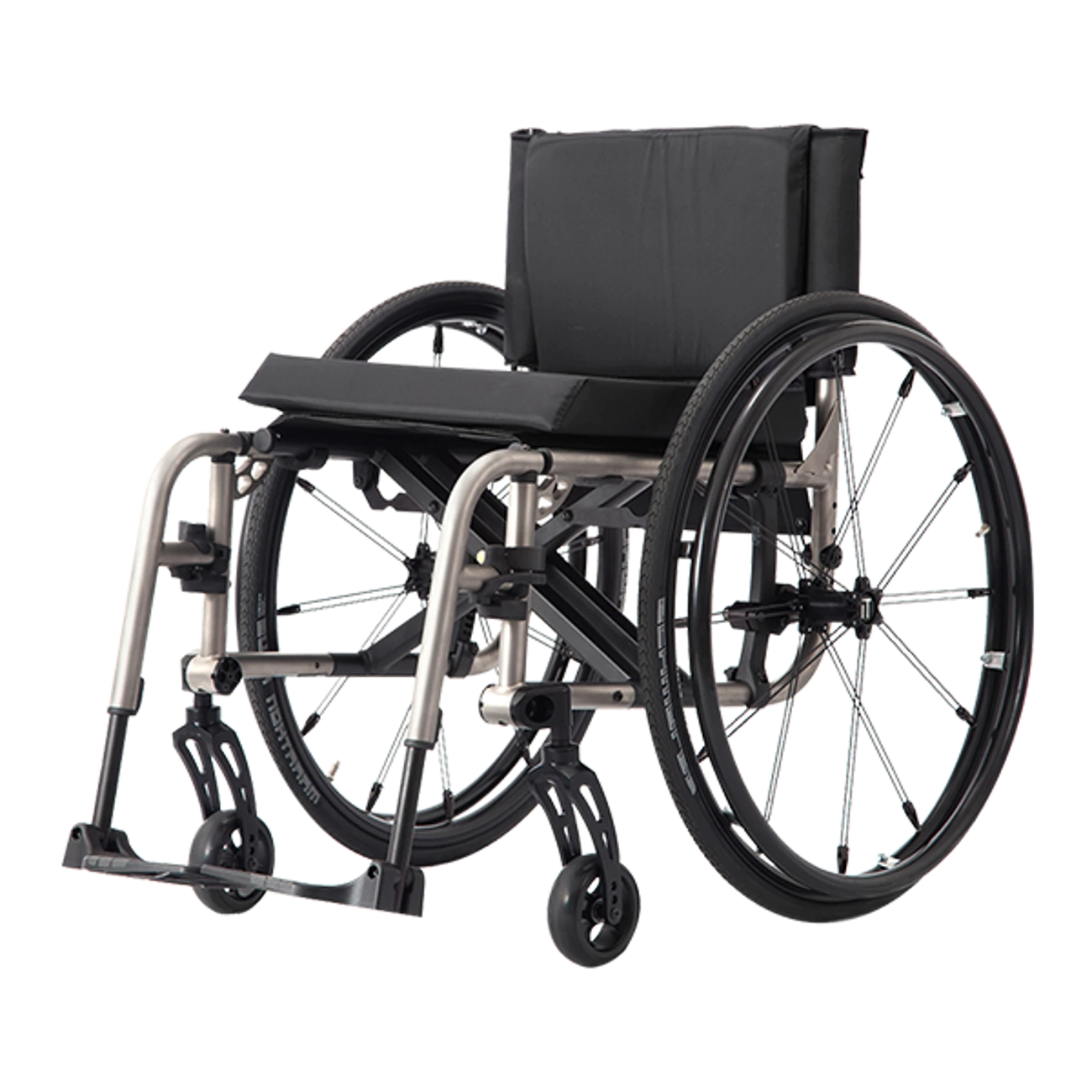

TiLite 2GX

by Permobil

TiLite 2GX

by Permobil

The new 2GX combines the advantages of a modular folding frame with the high strength and vibration dampening characteristics of titanium. Add the optimization of full adjustability and the 2GX is designed to empower – no matter where you choose to roll.

The Tru-Fit System opens up the world of adjustability by incorporating an infinite adjustment mechanism. The Tru-Fit system allows you to fine tune the fit of your chair because you are not limited to a series of pre-set holes. Also, instead of bolting through frame-weakening holes, components clamp directly onto the frame. This eliminates one of the main stress points on today’s wheelchairs by reducing the number of holes in the frame.

Improved Speedloader Design makes for easier, more durable adjustments and two positions (forward/backwards) for caster positioning.

Redesigned Footplates are lighter with a rubberized non-slip surface and an updated look.

Patented Curved Axle Plate allows for the greatest range in center of gravity adjustment and rear seat height adjustment.

Snap-In Seat Saddles lock the cross tubes in place on TiLite’s rigid folding mechanism. This feature helps the 2GX achieve rigid chair performance.

The 2GX utilizes Machined Plugs to create rear wheel camber. In contrast to using washers to create rear wheel camber, the use of machined camber plugs precisely aligns the 2GX’s rear wheels, allowing the chair to consistently track straight.

TiShaft Back Release Bar makes folding and unfolding the backrest easy from any angle.

Resources

TiLite 2GX Owner’s Manual TiLite Colors Brochure TiLite Warranty

Features

Modular Design

The modular frame design of the 2GX facilitates configurability in the field. This includes adding aftermarket seating systems, switching fixed and swing away front ends, and growing chair width and/or depth to meet changing customer needs.

This includes:

  • Adding aftermarket seating systems.
  • Switching fixed and swing away front ends.
  • Growing chair width and/or depth.

Folding Frame Design

The 2GX folding frame is compact, with a fluid, easy-to-use folding mechanism. Side-to-side folding minimizes the folding width and maximizes ease of transportation. These features are “must have” advantages for anyone who chooses a folding chair.

The Titanium Advantage

Titanium absorbs vibration, won’t break, and has the highest strength-to-weight ratio of any metal on Earth. That is why TiLite builds our highest performing wheelchairs from seamless, aerospace-grade titanium. If you want strength, durability, and a smooth roll, you want a titanium ride.

Full Adjustability

The Tru-Fit system opens up the world of adjustability by incorporating an infinite adjustment mechanism. The Tru-Fit system allows you to fine tune the fit of your wheelchair because you are not limited to a series of pre-set holes.

Specifications

Frame Type* Folding
Frame Style* Modular Box Frame
Frame Material* Titanium
TiFit* N/A
Adjustability* Full Adjustability
Growable* N/A
Custom Configuration* YES
Frame Options Fixed Front End
Swing Away (All-In-One Swing In, Swing Out & Removable)
Power Adaptable Frame
Reinforced Frame
Heavy Duty Edition
Transport Weight** Fixed Front – 13.1 lbs.
Swing Away – 15.5 lbs
Seat Width 12″ – 22″
Seat Depth 12″ – 20″
Front Seat Height 13.5″ – 21.5″
Rear Seat Height 13″ – 20″
Camber 0°, 2°, 4°, 6° or 8°
Front Frame Angle Fixed Front – 70°, 80° or 85°
Swing Away – 70°, 80°, 85° or 90°
Footrest Width Options Standard Taper
Seat Back Type Folding Seat Back
Adj. Height 11″ – 20.5″
Adj. Angle 80° – 101°Fixed Seat Back
Adj. Height 11″ – 20″
Center of Gravity Adjustment 6″
Weight Limit Standard – 265 lbs.
Heavy Duty Edition – 350 lbs.
Transit Options N/A
Warranty Lifetime on Frame
One Year on TiLite Components

**Weight based on 16″ x 16″ wheelchair with all standard features except rear wheels. Rear wheels are not included due to the varying weights of the numerous wheel configurations offered by TiLite. For reference, a pair of standard 24″ (540) rear wheels weighs 7.2 lbs.
